M3G12005D, M3G12003R3S HYBRID-HIGH RELIABILITY RADIATION HARDENED DC-DC CONVERTER

M3G12005D Description

HYBRID-HIGH RELIABILITY RADIATION HARDENED DC-DC CONVERTER PD-97820A M3G-SERIES 120V Input, Single/Dual Output .
The M3G-Series of DC-DC converters are radiation hardened, high reliability converters designed for extended operation in hostile environments.

M3G12005D Features

*  Total Dose > 200 kRads(Si) typically usable to > 300 kRads(Si)
*  SEE Hardened to LET up to 82 MeV. cm2/mg
*  Low Weight < 110 grams
*  Low Input & Output Noise
*  Magnetically Coupled Feedback
*  95V to 140V DC Input Range
*  Up to 40W Output Power
*  Single and Du

M3G12005D Applications

* such as geostationary earth orbit satellites and deep space probes. They exhibit a high tolerance to total ionizing dose, single event effects and environmental stresses such as temperature extremes, mechanical shock, and vibration. The converters incorporate a fixed frequency single ended forward t

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: M3G12005D, M3G12003R3S. Please refer to the document for exact specifications by model.

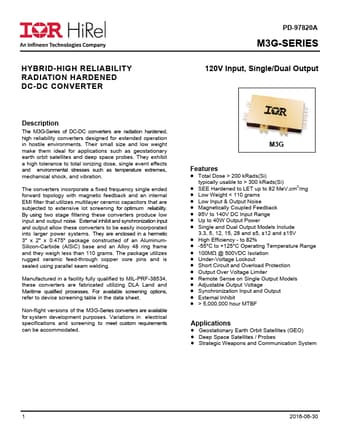

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M3G12005D, M3G12003R3S
Manufacturer
International Rectifier
File Size
434.14 KB
Datasheet
M3G12003R3S-InternationalRectifier.pdf
Description
HYBRID-HIGH RELIABILITY RADIATION HARDENED DC-DC CONVERTER
Note
This datasheet PDF includes multiple part numbers: M3G12005D, M3G12003R3S.
Please refer to the document for exact specifications by model.
