MBR2040CT - Schottky Barrier Rectifiers

Product Overview

📥 Download Datasheet

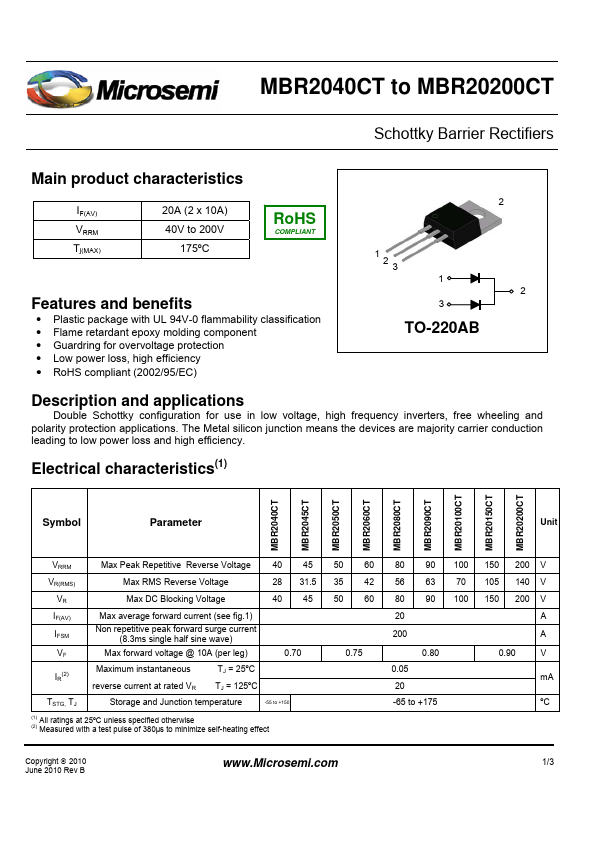

Datasheet preview – MBR2040CT

Datasheet Details

Part number MBR2040CT
Manufacturer Microsemi
File Size 146.80 KB
Description Schottky Barrier Rectifiers
Datasheet download datasheet MBR2040CT Datasheet

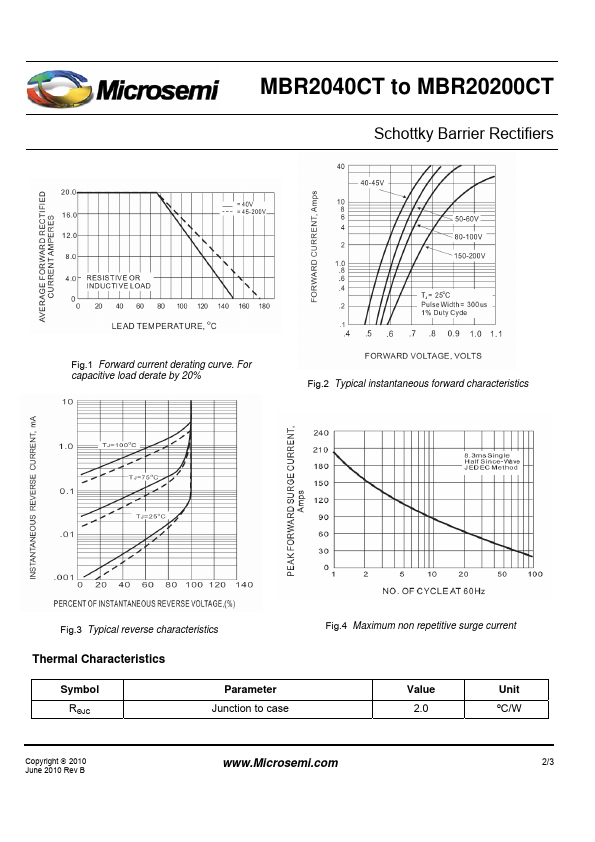

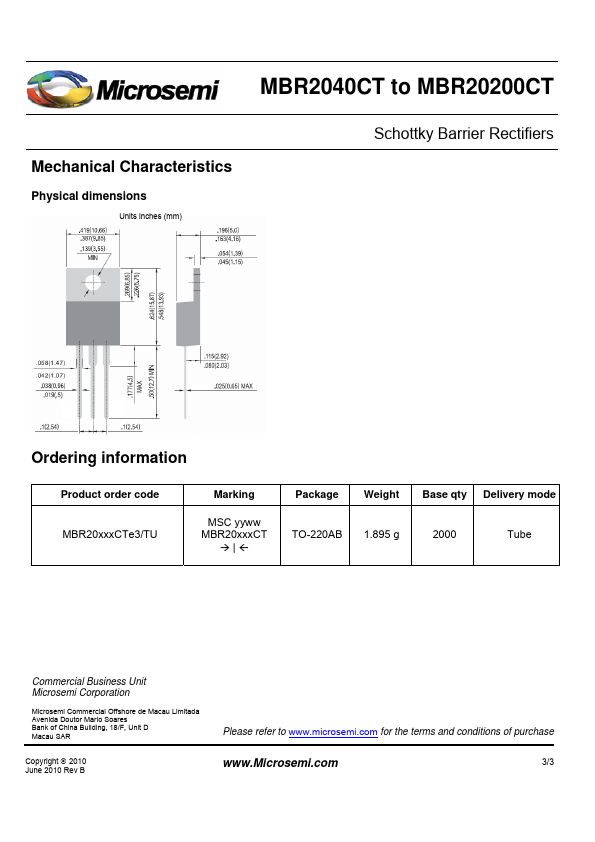

Additional preview pages of the MBR2040CT datasheet.

Product details

Description

and applications Double Schottky configuration for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.The Metal silicon junction means the devices are majority carrier conduction leading to low power loss and high efficiency.Electrical characteristics(1) MBR2040CT MBR2045CT MBR2050CT MBR2060CT MBR2080CT MBR2090CT MBR20100CT MBR20150CT MBR20200CT Symbol Parameter Unit VRRM Max Peak Repetitive Reverse Voltage 40 45 VR(RMS) Max RMS Reverse Vol

Features
