Datasheet Details
Part number:
JAN2N4093, JAN2N4091
Manufacturer:
File Size:
66.31 KB
Description:
N-channel j-fet.
Note:
This datasheet PDF includes multiple part numbers: JAN2N4093, JAN2N4091.
Please refer to the document for exact specifications by model.

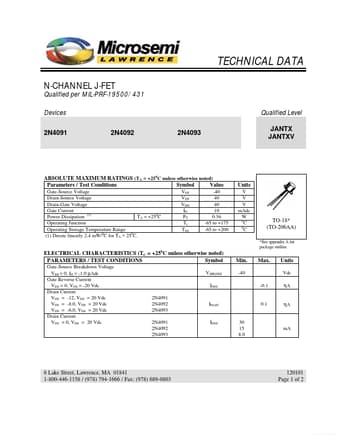

JAN2N4093, JAN2N4091, N-CHANNEL J-FET
TECHNICAL DATA N-CHANNEL J-FET Qualified per MIL-PRF-19500/431 Devices 2N4091 2N4092 2N4093 Qualified Level JANTX JANTXV ABSOLUTE MAXIMUM RATINGS (TA = +250C unless otherwise noted) Parameters / Test Conditions Symbol Value Gate-Source Voltage Drain-Source Voltage Drain-Gate Voltage Gate Current Power Dissipation (1) TA = +250C Operating Junction Operating Storage Temperature Range (1) Derate linearly 2.4 mW/0C for TA > 250C.
VGS VDS VDG IG PT Tj Tstg -40 40 40 10 0.36 -65 to +175 -65 to +200
