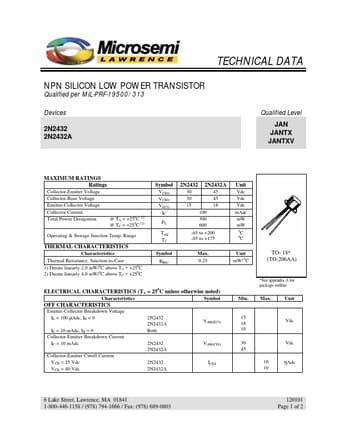

TECHNICAL DATA
NPN SILICON LOW POWER TRANSISTOR
Qualified per MIL-PRF-19500/313
Devices
2N2432 2N2432A
Qualified Level
JAN JANTX JANTXV
MAXIMUM RATINGS
Ratings
Collector-Emitter Voltage
Collector-Base Voltage
Emitter-Collector Voltage
Collector Current
Total Power Dissipation
@ TA = +250C (1) @ TC = +250C (2)
Operating & Storage Junction Temp. Range
THERMAL CHARACTERISTICS Characteristics
Thermal Resistance, Junction-to-Case 1) Derate linearly 2.0 mW/0C above TA > +250C 2) Derate linearly 4.0 mW/0C above TC > +250C
Symbol VCEO VCBO VECO IC
PT
Tstg TJ
2N2432 2N2432A 30 45 30 45 15 18 100 300 600
-65 to +200 -65 to +175
Unit Vdc
Vdc
Vdc
mAdc
mW mW 0C 0C
Symbol RθJC
Max. 0.
