APT70GR120L, APT70GR120B2 IGBT

APT70GR120L Description

AAPPTT7700GGRR112200BB2_2L APT70GR120L 1200V, 70A, Vce(on) = 2.5V Typical Ultra Fast NPT - IGBT® The Ultra Fast NPT - IGBT® is a new generation of h.

APT70GR120L Features

* Low Saturation Voltage
* Low Tail Current
* RoHS Compliant
* Short Circuit Withstand Rated
* High Frequency Switching
* Ultra Low Leakage Current Unless stated otherwise, Microsemi discrete IGBTs contain a single IGBT die. This device is

APT70GR120L Applications

* such as induction heating (IH), motor control, general purpose inverters and uninterruptible power supplies (UPS). MAXIMUM RATINGS Symbol Parameter All Ratings: TC = 25°C unless otherwise specified. Ratings Unit Vces VGE I C1 I C2 I CM SCWT PD TJ,TSTG TL Collector Emitter Voltage Gate-Emi

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: APT70GR120L, APT70GR120B2. Please refer to the document for exact specifications by model.

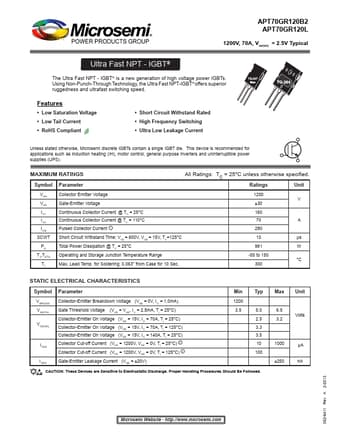

datasheet Preview Page 2 datasheet Preview Page 3
