APT100DL60HJ Fast Diode Full Bridge Power Module

Microsemi

APT100DL60HJ Description

APT100DL60HJ ISOTOP®Fast Diode Full Bridge Power Module VRRM = 600V IF = 100A @ Tc = 80°C Application * * * * Switch m.

APT100DL60HJ Features

* Ultra fast recovery times Soft recovery characteristics High blocking voltage High current Low leakage current Very low stray inductance High level of integration ISOTOP® Package (SOT-227) + ~ - Benefits

📥 Download Datasheet

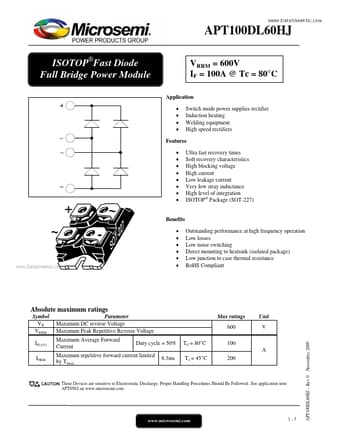

APT100DL60HJ Datasheet Preview — Preview of APT100DL60HJ PDF

Datasheet Details

Part number: APT100DL60HJ
Manufacturer: Microsemi ↗
File Size: 97.50 KB
Datasheet: APT100DL60HJ_Microsemi.pdf
Description: Fast Diode Full Bridge Power Module
