APT10090SLL, APT10090BLL Datasheet - Microsemi

APT10090SLL POWER MOS 7 MOSFET

APT10090BLL APT10090SLL 1000V 12A 0.950Ω POWER MOS 7 MOSFET Power MOS 7® is a new generation of low loss, high voltage, N-Channel enhancement mode power MOSFETS. Both conduction and switching losses are addressed with Power MOS 7® by significantly lowering RDS(ON) and Qg. Power MOS 7® combines lower conduction and switching losses along with exceptionally fast switching speeds inherent with APT's patented metal gate structure. BLL TO-247 Lower Input Capacitance Lower Miller.

APT10090BLL-Microsemi.pdf

This datasheet PDF includes multiple part numbers: APT10090SLL, APT10090BLL. Please refer to the document for exact specifications by model.

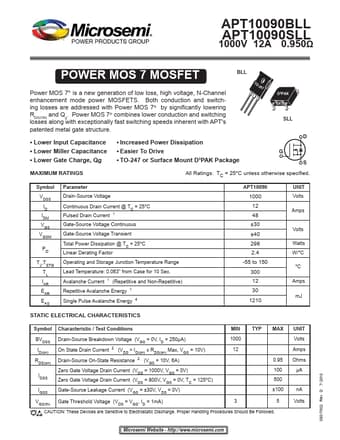

APT10090SLL Datasheet Preview Page 2 APT10090SLL Datasheet Preview Page 3

Datasheet Details

Part number:

APT10090SLL, APT10090BLL

Manufacturer:

Microsemi ↗

File Size:

206.43 KB

Description:

Power mos 7 mosfet.

Note:

This datasheet PDF includes multiple part numbers: APT10090SLL, APT10090BLL.
Please refer to the document for exact specifications by model.
