LMX1622-12-02 - DUAL 5W / DIGITAL DIMMING CCFL INVERTER MODULE

Microsemi Corporation

📥 Download Datasheet

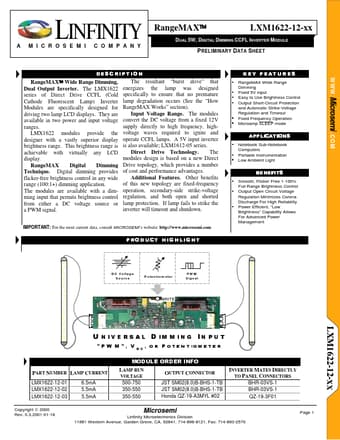

LMX1622-12-02 Datasheet Preview — Preview of LMX1622-12-02 PDF

Datasheet Details

Part number	LMX1622-12-02
Manufacturer	Microsemi Corporation
File Size	239.11 KB
Description	DUAL 5W / DIGITAL DIMMING CCFL INVERTER MODULE
Datasheet	LMX1622-12-02_MicrosemiCorporation.pdf

LMX1622-12-02 Product details

Description

CN1 (Molex 53261-0890) CN1-1,2 VIN Main Input Power Supply (10.8V to 13.2V) CN1-3,4 GND Power Supply Return SLEEP CN1-5 >1.5V(Backlight on), 150Hz), minimum pulse width 10uS CN2,3 for LMX1622-12-01, 02 (JST SM02(8.0)B-BHS-1-TB) High Voltage Connection

Features

Other benefits of this new topology are fixed-frequency operation, secondary-side strike-voltage regulation, and both open and shorted lamp protection. If lamp fails to strike the inverter will timeout and shutdown. RangeMAX Wide Range Dimming Fixed 5V input Easy to Use Brightness Control Output Short-Circuit Protection and Automatic Strike-Voltage Regulation and Timeout Fixed Frequency Operation Microamp SLEEP mode W W W . Microsemi . COM Notebook S.
