CDLL3154_MicrosemiCorporation.pdf
Datasheet Details
Part number:
CDLL3156, CDLL3154
Manufacturer:
Microsemi ↗ Corporation
File Size:
111.66 KB
Description:
Temperature compensated zener reference diodes.
Note:
This datasheet PDF includes multiple part numbers: CDLL3156, CDLL3154.
Please refer to the document for exact specifications by model.

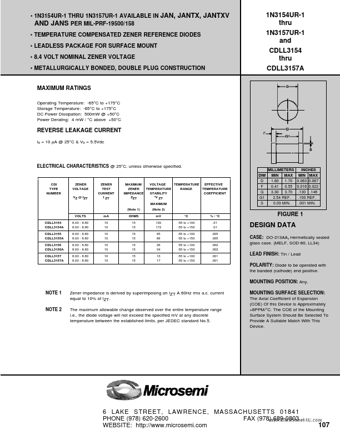

CDLL3156, CDLL3154, TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
1N3154UR-1 THRU 1N3157UR-1 AVAILABLE IN AND JANS PER MIL-PRF-19500/158 JAN, JANTX, JANTXV TEMPERATURE COMPENSATED ZENER REFERENCE DIODES LEADLESS PACKAGE FOR SURFACE MOUNT 8.4 VOLT NOMINAL ZENER VOLTAGE METALLURGICALLY BONDED, DOUBLE PLUG CONSTRUCTION 1N3154UR-1 thru 1N3157UR-1 and CDLL3154 thru CDLL3157A MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ +50°C Power Derat
