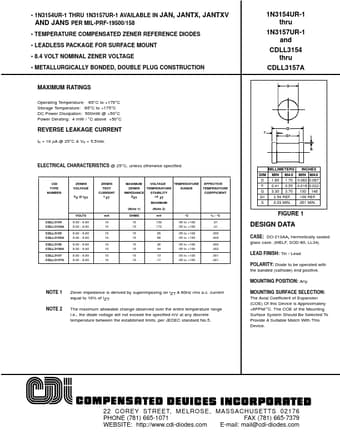

• 1N3154UR-1 THRU 1N3157UR-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/158 • TEMPERATURE COMPENSATED ZENER REFERENCE DIODES • LEADLESS PACKAGE FOR SURFACE MOUNT • 8.4 VOLT NOMINAL ZENER VOLTAGE • METALLURGICALLY BONDED, DOUBLE PLUG CONSTRUCTION
1N3154UR-1 thru 1N3157UR-1 and CDLL3154 thru CDLL3157A
MAXIMUM RATINGS
Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ +50°C Power Derating: 4 mW / °C above +50°C
REVERSE LEAKAGE CURRENT
lR = 10 µA @ 25°C & VR = 5.5Vdc
ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise specified.
CDLL3154A Datasheet
