APT7F120B N-Channel FREDFET

Microsemi Corporation

APT7F120B Description

APT7F120B APT7F120S 1200V, 7A, 2.90Ω Max, trr ≤190ns N-Channel FREDFET Power MOS 8™ is a high speed, high voltage N-channel switch-mode power MOSFET..

APT7F120B Features

* Fast switching with low EMI
* Low trr for high reliability
* Ultra low Crss for improved noise immunity
* Low gate charge
* Avalanche energy rated

APT7F120B Applications

* ZVS phase shifted and other full bridge
* Half bridge
* PFC and other boost converter
* Buck converter
* Single and two switch forward
* Flyback Absolute Maximum Ratings Symbol ID IDM VGS EAS IAR Parameter Continuous Drain Current @ TC = 25°C Contin

📥 Download Datasheet

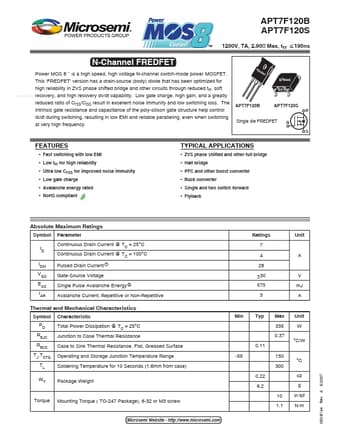

APT7F120B Datasheet Preview — Preview of APT7F120B PDF

Datasheet Details

Part number: APT7F120B
Manufacturer: Microsemi ↗ Corporation
File Size: 279.94 KB
Datasheet: APT7F120B_MicrosemiCorporation.pdf
Description: N-Channel FREDFET
