1N5822US - 3 Amp SQ-MELF Schottky Barrier Rectifiers

Microsemi Corporation

The 1N5822US by Microsemi Corporation is a 3 Amp SQ-MELF Schottky Barrier Rectifiers. Below is the official datasheet preview.

📥 Download Datasheet

1N5822US 3 Amp SQ-MELF Schottky Barrier Rectifiers by Microsemi Corporation - Datasheet Preview — Official preview page of the **1N5822US** 3 Amp SQ-MELF Schottky Barrier Rectifiers datasheet (Microsemi Corporation).

Datasheet Details

Part number	1N5822US
Manufacturer	Microsemi Corporation
File Size	1.02 MB
Description	3 Amp SQ-MELF Schottky Barrier Rectifiers
Datasheet	1N5822US_MicrosemiCorporation.pdf

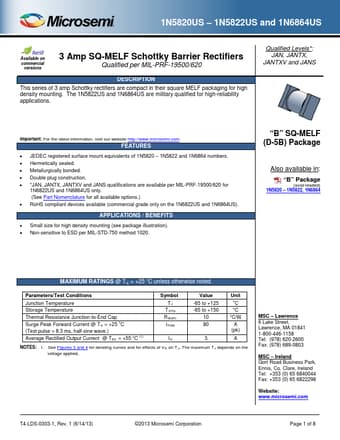

Additional preview pages of the 1N5822US datasheet.

1N5822US Product details

Description

This series of 3 amp Schottky rectifiers are compact in their square MELF packaging for high density mounting. : JAN, JANTX, JANTXV and JANS Important: For the latest information, visit our website http://www.microsemi.com.

Features

JEDEC registered surface mount equivalents of 1N5820.
1N5822 and 1N6864 numbers.
Hermetically sealed.
Metallurgically bonded.
Double plug construction.
JAN, JANTX, JANTXV and JANS qualifications are available per MIL-PRF-19500/620 for 1N6822US and 1N6864US only. (See Part Nomenclature for all available options. ).
RoHS compliant devices available (commercial grade only on the 1N6822US and 1N6864US).
