1N5822U Aerospace 40V power Schottky rectifier

1N5822U Description

A K K A Leadless chip carrier 2 (LCC-2B) Product status link 1N5822U Product summary IF(AV) 3A VRRM 40 V VF(max.) 0.485 V TJ(max.) 150 °C.
The 1N5822U Schottky diode is ESCC qualified.

1N5822U Features

* Low forward voltage drop
* Very small conduction losses
* Ultrafast switchings with negligible losses
* High thermal conductivity materials
* Surface mount hermetic package
* Radiation performance
* 150 krad (Si) low dose rate
* 3 Mra

1N5822U Applications

* Satellite and spacecraft power systems
* Switch mode power supply
* 5 V flyback or forward converter output rectification
* DC motor chopper free wheeling diode
* Reverse polarity protection

📥 Download Datasheet

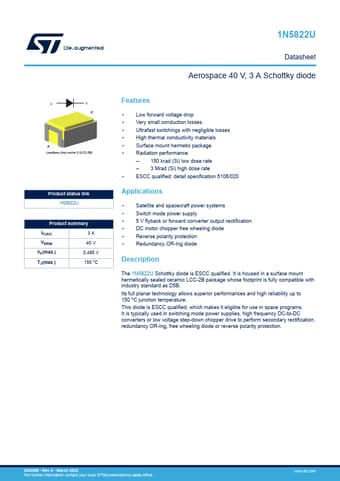

Preview of 1N5822U PDF
