M29F200FT - Micron Parallel NOR Flash Embedded Memory

Description

6 Signal Assignments 16 TSOP Pin Assignments 16 Small-Outline Pin Assignments 20 Signal Descriptions 23 Bus Operations 25 Read 25 Write 25 Output Disable 25 Standby 25 Automatic Standby 25 Command Interface 26 READ/RESET Command 26 AUTO SELECT Command

Features

  • Micron Parallel NOR Flash Embedded Memory Top/Bottom Boot Block 5V Supply M29F200FT/B, M29F400FT/B, M29F800FT/B, M29F160FT/B Features.
  • Supply voltage.
  • VCC = 5V.
  • Access time: 55ns.
  • Program/erase controller.
  • Embedded byte/word program algorithms.
  • Erase suspend and resume modes.
  • Low power consumption.
  • Standby and automatic standby.
  • 100,000.

📥 Download Datasheet

📁 Similar Datasheet

  • M29F200FT - (M29Fxx0Fx) Top / Bottom Boot Block 5 V Supply Flash Memory (Numonyx)
  • M29F200FB - (M29Fxx0Fx) Top / Bottom Boot Block 5 V Supply Flash Memory (Numonyx)
  • M29F200B - 2 Mbit 256Kb x8 or 128Kb x16 / Boot Block Single Supply Flash Memory (ST Microelectronics)
  • M29F200BB - 2 Mbit 256Kb x8 or 128Kb x16 / Boot Block Single Supply Flash Memory (ST Microelectronics)
  • M29F200BT - 2 Mbit 256Kb x8 or 128Kb x16 / Boot Block Single Supply Flash Memory (ST Microelectronics)
  • M29F200T - 2 Mbit 256Kb x8 or 128Kb x16 / Boot Block Single Supply Flash Memory (ST Microelectronics)
  • M29F002B - 2 Mbit 256Kb x8 / Boot Block Single Supply Flash Memory (ST Microelectronics)
  • M29F002BB - 2 Mbit 256Kb x8 / Boot Block Single Supply Flash Memory (ST Microelectronics)
  • M29F002BNT - 2 Mbit 256Kb x8 / Boot Block Single Supply Flash Memory (ST Microelectronics)
  • M29F002BT - 2 Mbit 256Kb x8 / Boot Block Single Supply Flash Memory (ST Microelectronics)
Other Datasheets by Micron
  • M29F200FB - Micron Parallel NOR Flash Embedded Memory
  • M29F160FB - Micron Parallel NOR Flash Embedded Memory
  • M29F160FT - Micron Parallel NOR Flash Embedded Memory
  • M29F400FB - Micron Parallel NOR Flash Embedded Memory
  • M29F400FT - Micron Parallel NOR Flash Embedded Memory
  • M29DW256G - Parallel NOR Flash Embedded Memory
  • M29W128GH - Parallel NOR Flash Embedded Memory
  • M29W128GL - Parallel NOR Flash Embedded Memory

Full PDF Text Transcription

Click to expand full text

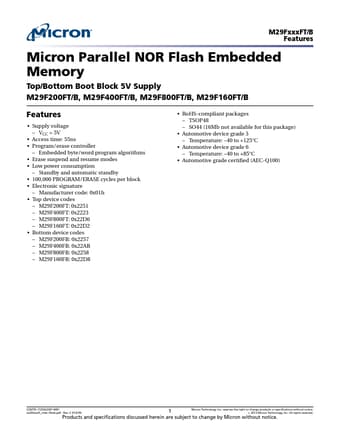

M29FxxxFT/B Features Micron Parallel NOR Flash Embedded Memory Top/Bottom Boot Block 5V Supply M29F200FT/B, M29F400FT/B, M29F800FT/B, M29F160FT/B Features • Supply voltage – VCC = 5V • Access time: 55ns • Program/erase controller – Embedded byte/word program algorithms • Erase suspend and resume modes • Low power consumption – Standby and automatic standby • 100,000 PROGRAM/ERASE cycles per block • Electronic signature – Manufacturer code: 0x01h • Top device codes – M29F200FT: 0x2251 – M29F400FT: 0x2223 – M29F800FT: 0x22D6 – M29F160FT: 0x22D2 • Bottom device codes – M29F200FB: 0x2257 – M29F400FB: 0x22AB – M29F800FB: 0x2258 – M29F160FB: 0x22D8 • RoHS-compliant packages – TSOP48 – SO44 (16Mb not available for this package) • Automotive device grade 3 – Temperature: –40 to +125°C • Automoti
