MT48LC8M16A2

The MT48LC8M16A2 is 2 Meg x 16 x 4 Banks SDR SDRAM designed by Micron Technology.

Product Overview

Micron Technology

📥 Download Datasheet

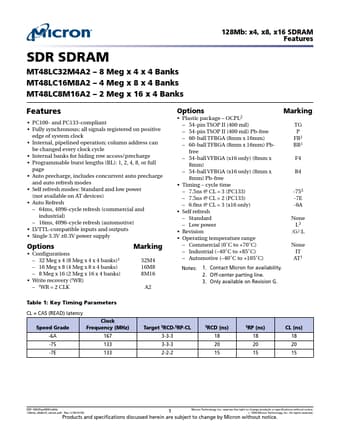

MT48LC8M16A2 2 Meg x 16 x 4 Banks SDR SDRAM by Micron Technology - Datasheet Preview — Datasheet preview – MT48LC8M16A2

Datasheet Details

Part number	MT48LC8M16A2, MT48LC32M4A2
Manufacturer	Micron Technology
File Size	3.64 MB
Description	2 Meg x 16 x 4 Banks SDR SDRAM
Datasheet	MT48LC32M4A2-MicronTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: MT48LC8M16A2, MT48LC32M4A2. Please refer to the document for exact specifications by model.
Additional preview pages of the MT48LC8M16A2 datasheet.

Product details

Features

Features.
PC100- and PC133-compliant.
Fully synchronous; all signals registered on positive edge of system clock.
Internal, pipelined operation; column address can be changed every clock cycle.
Internal banks for hiding row access/precharge.
Programmable burst lengths (BL): 1, 2, 4, 8, or full page.
Auto precharge, includes concurrent auto precharge and auto refresh modes.
Self refresh modes: Standard and low power (not available o.
