MT28F008B5, MT28F800B5 - (MT28F008B5 / MT28F800B5) FLASH MEMORY

Micron Technology

📥 Download Datasheet

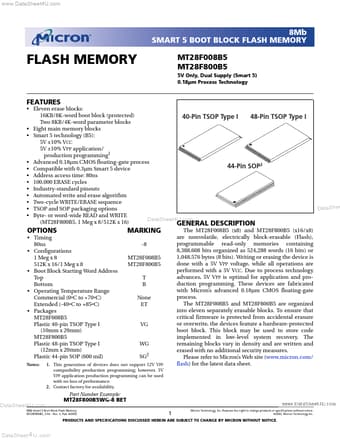

MT28F008B5 Datasheet Preview — This datasheet PDF includes multiple part numbers: MT28F008B5, MT28F800B5. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MT28F008B5, MT28F800B5
Manufacturer	Micron Technology
File Size	1.47 MB
Description	(MT28F008B5 / MT28F800B5) FLASH MEMORY
Datasheet	MT28F800B5_MicronTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: MT28F008B5, MT28F800B5. Please refer to the document for exact specifications by model.

MT28F008B5 Product details

Description

The MT28F008B5 (x8) and MT28F800B5 (x16/x8) OPTIONS MARKING are nonvolatile, electrically block-erasable (Flash), Timing programmable read-only memories containing 80ns -8 8,388,608 bits organized as 524,288 words (16 bits) or Configurations 1,048,576 bytes (8 bits). Boot Block St

Features

MT28F008B5 MT28F800B5 5V Only, Dual Supply (Smart 5) 0.18µm Process Technology.
Eleven erase blocks: 16KB/8K-word boot block (protected) 40-Pin TSOP Type I 48-Pin TSOP Type I Two 8KB/4K-word parameter blocks.
Eight main memory blocks.
Smart 5 technology (B5): 5V ±10% VCC 5V ±10% VPP.
