MT28GU01GAAA2EGC-0SIT - StrataFlash Embedded Memory

Download the MT28GU01GAAA2EGC-0SIT datasheet PDF (MT28GU256AAA1EGC-0SIT included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for strataflash embedded memory.

Features

  • Micron StrataFlash Embedded Memory MT28GU256AAA1EGC-0SIT, MT28GU256AAA2EGC-0SIT MT28GU512AAA1EGC-0SIT, MT28GU512AAA2EGC-0SIT, MT28GU01GAAA1EGC-0SIT, MT28GU01GAAA2EGC-0SIT Features.
  • High-performance read, program, and erase.
  • 96ns initial read access.
  • 108 MHz with zero wait-state synchronous burst reads: 7ns clock-to-data output.
  • 133 MHz with zero wait-state synchronous burst reads: 5.5ns clock-to-data output.
  • 8-, 16-, and continuous-word synchronous-b.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MT28GU256AAA1EGC-0SIT-MICRON.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • MT2833S5 - 30V Power MOSFET (MT Semiconductor)
  • MT2854M16B1LL - FLASH MEMORY (Micron Technology)
  • MT28C128532W18 - 128Mb Multibank Burst Flash 32Mb ASYNC/PAGE CellularRAM COMBO Memory (Micron Technology)
  • MT28C128532W30D - 128Mb Multibank Burst Flash 32Mb ASYNC/PAGE CellularRAM COMBO Memory (Micron Technology)
  • MT28C128564W18 - 128Mb Multibank Burst Flash 32Mb ASYNC/PAGE CellularRAM COMBO Memory (Micron Technology)
  • MT28C128564W30D - 128Mb Multibank Burst Flash 32Mb ASYNC/PAGE CellularRAM COMBO Memory (Micron Technology)
  • MT28C3214P2FL - FLASH AND SRAM COMBO MEMORY (Micron Technology)
  • MT28C3214P2NFL - FLASH AND SRAM COMBO MEMORY (Micron Technology)
  • MT28C3224P18 - FLASH AND SRAM COMBO MEMORY (Micron Technology)
  • MT28C3224P20 - FLASH AND SRAM COMBO MEMORY (Micron Technology)
Other Datasheets by MICRON

Full PDF Text Transcription

Click to expand full text

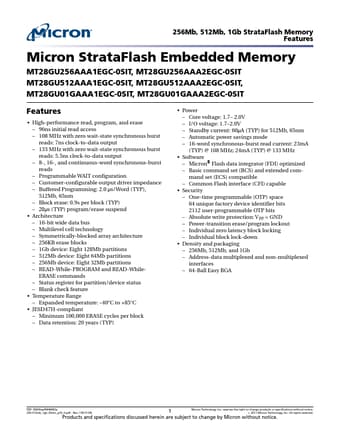

256Mb, 512Mb, 1Gb StrataFlash Memory Features Micron StrataFlash Embedded Memory MT28GU256AAA1EGC-0SIT, MT28GU256AAA2EGC-0SIT MT28GU512AAA1EGC-0SIT, MT28GU512AAA2EGC-0SIT, MT28GU01GAAA1EGC-0SIT, MT28GU01GAAA2EGC-0SIT Features • High-performance read, program, and erase – 96ns initial read access – 108 MHz with zero wait-state synchronous burst reads: 7ns clock-to-data output – 133 MHz with zero wait-state synchronous burst reads: 5.5ns clock-to-data output – 8-, 16-, and continuous-word synchronous-burst reads – Programmable WAIT configuration – Customer-configurable output driver impedance – Buffered Programming: 2.0 μs/Word (TYP), 512Mb, 65nm – Block erase: 0.
