25C040 - 4K SPI Bus Serial EEPROM

MicrochipTechnology

The 25C040 by MicrochipTechnology is a 4K SPI Bus Serial EEPROM. Below is the official datasheet preview.

📥 Download Datasheet

25C040 4K SPI Bus Serial EEPROM by MicrochipTechnology - Datasheet Preview — Official preview page of the **25C040** 4K SPI Bus Serial EEPROM datasheet (MicrochipTechnology).

Datasheet Details

Part number	25C040
Manufacturer	MicrochipTechnology
File Size	287.05 KB
Description	4K SPI Bus Serial EEPROM
Datasheet	25C040_MicrochipTechnology.pdf

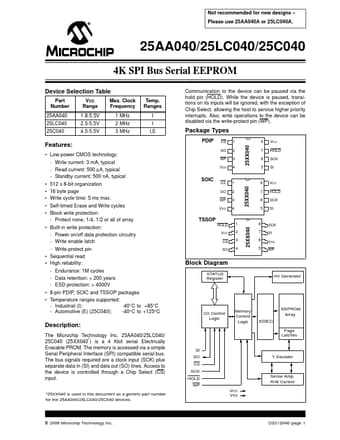

Additional preview pages of the 25C040 datasheet.

25C040 Product details

Description

The Microchip Technology Inc. ) is a 4 Kbit serial Electrically Erasable PROM. 25XX040 is used in this document as a generic part number for the 25AA040/25LC040/25C040 devices.

Features

Low-power CMOS technology: - Write current: 3 mA, typical - Read current: 500 μA, typical - Standby current: 500 nA, typical.
512 x 8-bit organization.
16 byte page.
Write cycle time: 5 ms max.
Self-timed Erase and Write cycles.
Block write protection: - Protect none, 1/4, 1/2 or all of array.
Built-in write protection: - Power on/off data protection circuitry - Write enable latch - Write-protect pin.
Seque.
