25C04 - 1K/2K/4K/8K/16K SPI Serial CMOS E2PROM

The 25C04 by CatalystSemiconductor is a 1K/2K/4K/8K/16K SPI Serial CMOS E2PROM. Below is the official datasheet preview.

Datasheet Details

Part number	25C04
Manufacturer	CatalystSemiconductor
File Size	59.97 KB
Description	1K/2K/4K/8K/16K SPI Serial CMOS E2PROM
Datasheet	25C04_CatalystSemiconductor.pdf

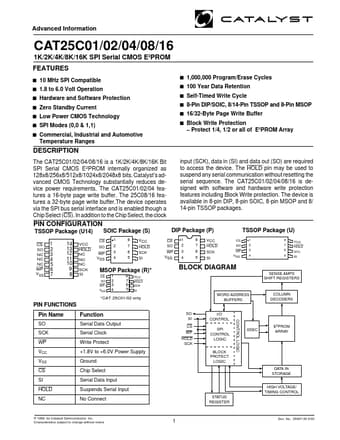

Additional preview pages of the 25C04 datasheet.

The CAT25C01/02/04/08/16 is a 1K/2K/4K/8K/16K Bit SPI Serial CMOS E2PROM internally organized as 128x8/256x8/512x8/1024x8/2048x8 bits.

s 10 MHz SPI Compatible s 1.8 to 6.0 Volt Operation s Hardware and Software Protection s Zero Standby Current s Low Power CMOS Technology s SPI Modes (0,0 & 1,1) s Commercial, Industrial and Automotive s 1,000,000 Program/Erase Cycles s 100 Year Data Retention s Self-Timed Write Cycle s 8-Pin DIP/SOIC, 8/14-Pin TSSOP and 8-Pin MSOP s 16/32-Byte Page Write Buffer s Block Write Protection.
Protect 1/4, 1/2 or all of E2PROM Array Temperature Ranges.
