dsPIC33EP64GS502 - 16-Bit Digital Signal Controllers

Product Overview

Microchip

Part number	dsPIC33EP64GS502
Manufacturer	Microchip
File Size	2.90 MB
Description	16-Bit Digital Signal Controllers
Datasheet	dsPIC33EP64GS502 Datasheet
Note	This datasheet PDF includes multiple part numbers: dsPIC33EP64GS502, dsPIC33EP16GS502. Please refer to the document for exact specifications by model.

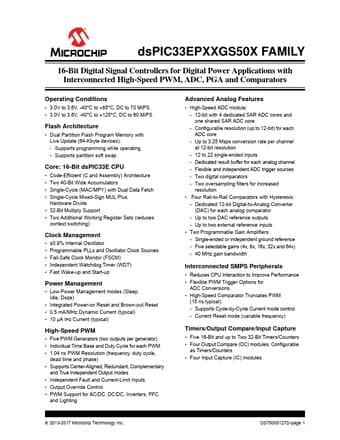

Additional preview pages of the dsPIC33EP64GS502 datasheet.

High-Speed ADC module: - 12-bit with 4 dedicated SAR ADC cores and one shared SAR ADC core - Configurable resolution (up to 12-bit) for each ADC core - Up to 3.25 Msps conversion rate per channel at 12-bit resolution - 12 to 22 single-ended inputs - Dedicated result buffer for each analog channel - Flexible and independent ADC trigger sources - Two digital comparators - Two oversampling filters for increased resolution.
Four Rail-to-Rail Comparators with Hysteresis: - Dedicate.
