TP2520 P-Channel Vertical DMOS FET

TP2520 Description

TP2520 P-Channel Enhancement-Mode Vertical DMOS FET .
The TP2520 low-threshold, Enhancement-mode (normally-off) transistor uses a vertical DMOS structure and a well-proven silicon-gate manufacturing proce.

TP2520 Features

* 2.4V Maximum Low Threshold
* High Input Impedance
* 125 pF Maximum Low Input Capacitance
* Fast Switching Speeds
* Low On-Resistance
* Free from Secondary Breakdown

TP2520 Applications

* Logic-Level Interfaces (Ideal for TTL and CMOS)
* Solid-State Relays
* Battery-Operated Systems
* Photovoltaic Drives
* Analog Switches
* General Purpose Line Drivers

📥 Download Datasheet

Preview of TP2520 PDF

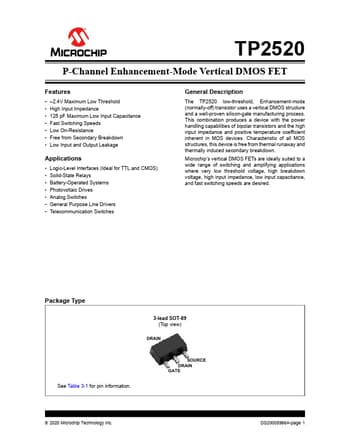

datasheet Preview Page 2 datasheet Preview Page 3
