SY88343BL, SY88343BL-Microchip 3.2 Gbps CML Limiting Post Amplifier

SY88343BL Description

SY88343BL 3.3V, 3.2 Gbps CML Limiting Post Amplifier with High Gain TTL Loss-of-Signal .
The SY88343BL low-power limiting post amplifier is designed for use in fiber-optic receivers.

SY88343BL Features

* Single 3.3V Power Supply
* DC to 3.2 Gbps Operation
* Low-Noise CML Data Outputs
* High Gain LOS
* Chatter-Free Open-Collector TTL Loss-of-Signal (LOS) Output with Internal 4.75 kΩ Pull-Up Resistor
* TTL /EN Input
* Programmable LOS Level Set

SY88343BL Applications

* Available in a 16-Lead VQFN Package Applications
* APON, BPON, EPON, and GPON
* Gigabit Ethernet
* Fibre Channel
* OC-3 and OC-12/24 SONET/SDH
* High-Gain Line Driver and Line Receiver Markets
* FTTP
* Optical Transceivers
* D

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SY88343BL, SY88343BL-Microchip. Please refer to the document for exact specifications by model.

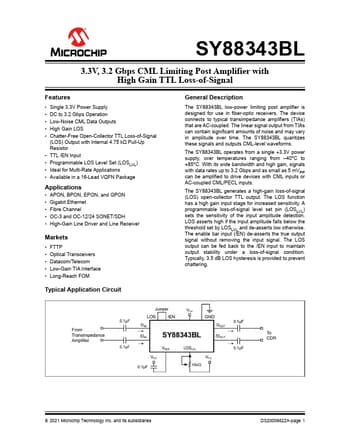

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY88343BL, SY88343BL-Microchip
Manufacturer
Microchip ↗
File Size
878.49 KB
Datasheet
SY88343BL-Microchip_removed.pdf
Description
3.2 Gbps CML Limiting Post Amplifier
Note
This datasheet PDF includes multiple part numbers: SY88343BL, SY88343BL-Microchip.
Please refer to the document for exact specifications by model.
