SY88303BL, SY88303BL-Microchip 3.2 Gbps CML Limiting Post Amplifier

SY88303BL Description

SY88303BL 3.3V, 3.2 Gbps CML Limiting Post Amplifier with Wide Loss-of-Signal Detection Range .
The SY88303BL low-power limiting post amplifier is designed for use in fiber-optic receivers.

SY88303BL Features

* Loss-of-Signal Detection Circuit Optimized to Detect a Wide Input Range
* Chatter-Free Open-Collector TTL Loss-of-Signal (LOS) Output
* Single 3.3V Power Supply
* 155 Mbps to 3.2 Gbps Operation
* Low-Noise CML Data Outputs
* Programmable LOS Level Se

SY88303BL Applications

* PON
* Gigabit Ethernet
* 1X and 2X Fibre Channel
* SONET/SDH: OC 3/12/24/48
* STM 1/4/8/16
* High-Gain Line Driver and Line Receiver Markets
* FTTX
* Optical Transceivers
* Datacom/Telecom
* Low-Gain TIA Interface

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SY88303BL, SY88303BL-Microchip. Please refer to the document for exact specifications by model.

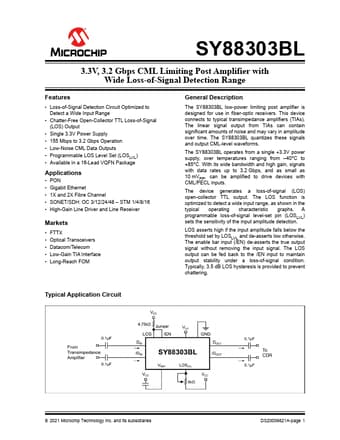

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY88303BL, SY88303BL-Microchip
Manufacturer
Microchip ↗
File Size
936.03 KB
Datasheet
SY88303BL-Microchip_removed.pdf
Description
3.2 Gbps CML Limiting Post Amplifier
Note
This datasheet PDF includes multiple part numbers: SY88303BL, SY88303BL-Microchip.
Please refer to the document for exact specifications by model.
