PL610-03, PL610-01 - Single IC XO

Name: PL610-03
SKU: PL610-03-1091183

Microchip

📥 Download Datasheet

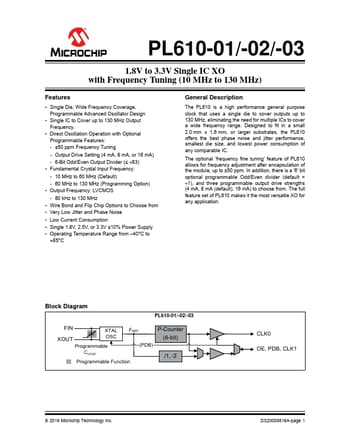

PL610-03 Datasheet Preview — This datasheet PDF includes multiple part numbers: PL610-03, PL610-01. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	PL610-03, PL610-01
Manufacturer	Microchip
File Size	175.15 KB
Description	Single IC XO
Datasheet	PL610-01-Microchip.pdf
Note	This datasheet PDF includes multiple part numbers: PL610-03, PL610-01. Please refer to the document for exact specifications by model.

PL610-03 Product details

Description

The PL610 is a high performance general purpose clock that uses a single die to cover outputs up to 130 MHz, eliminating the need for multiple ICs to cover a wide frequency range.

Features

Single Die, Wide Frequency Coverage, Programmable Advanced Oscillator Design.
Single IC to Cover up to 130 MHz Output Frequency.
Direct Oscillation Operation with Optional Programmable Features: - ±50 ppm Frequency Tuning - Output Drive Setting (4 mA, 8 mA, or 16 mA) - 6-Bit Odd/Even Output Divider (≤ ÷63).
Fundamental Crystal Input Frequency: - 10 MHz to 60 MHz (Default) - 60 MHz to 130 MHz (Programming Option).
Output Frequency: LVCMOS - 80 kHz to.
