PL610-01 - Single IC XO

Name: PL610-01
SKU: PL610-01-1089594

Microchip

📥 Download Datasheet

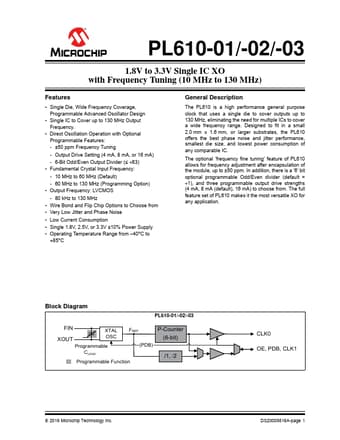

PL610-01 Datasheet Preview — Preview of PL610-01 PDF

Datasheet Details

Part number	PL610-01
Manufacturer	Microchip
File Size	175.15 KB
Description	Single IC XO
Datasheet	PL610-01-Microchip.pdf

PL610-01 Product details

Description

The PL610 is a high performance general purpose clock that uses a single die to cover outputs up to 130 MHz, eliminating the need for multiple ICs to cover a wide frequency range.

Features

Single Die, Wide Frequency Coverage, Programmable Advanced Oscillator Design.
Single IC to Cover up to 130 MHz Output Frequency.
Direct Oscillation Operation with Optional Programmable Features: - ±50 ppm Frequency Tuning - Output Drive Setting (4 mA, 8 mA, or 16 mA) - 6-Bit Odd/Even Output Divider (≤ ÷63).
Fundamental Crystal Input Frequency: - 10 MHz to 60 MHz (Default) - 60 MHz to 130 MHz (Programming Option).
Output Frequency: LVCMOS - 80 kHz to.
