PAC1954, PAC1951-1 Single/Multi-Channel Power Monitor

PAC1954 Description

PAC195X Single/Multi-Channel Power Monitor with Accumulator, 32V Full-Scale Range .
The PAC195X products are one, two, three and four-channel energy monitors, with bus voltage monitors and current sense amplifiers that feed high-resol.

PAC1954 Features

* High-Side/Low-Side Current Monitor with One, Two, Three or Four Channels: - 100 mV Full-Scale Range (FSR) for current sense voltage - Programmable FSR: -50 mv to +50 mv - 16-bit resolution for current measurements - External sense resistor sets the full-scale current range - Very low input

PAC1954 Applications

* Embedded Computing
* Networking
* FPGA Systems
* Low-Voltage/High-Power
* AI, GPU
* Industrial
* Linux® Applications
* Notebook and Tablet Computing
* Cloud, Linux and Server Computing
* Optical Networking Modules

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PAC1954, PAC1951-1. Please refer to the document for exact specifications by model.

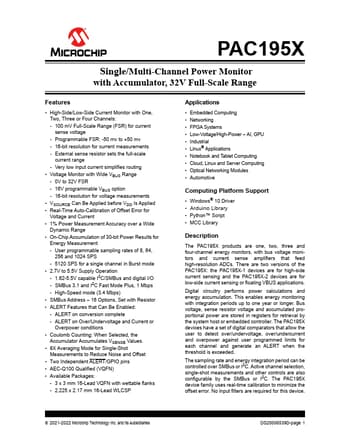

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PAC1954, PAC1951-1
Manufacturer
Microchip ↗
File Size
1.14 MB
Datasheet
PAC1951-1-Microchip.pdf
Description
Single/Multi-Channel Power Monitor
Note
This datasheet PDF includes multiple part numbers: PAC1954, PAC1951-1.
Please refer to the document for exact specifications by model.
