PAC1951-1 - Single/Multi-Channel Power Monitor

Name: PAC1951-1
SKU: PAC1951-1-1525060

Microchip

📥 Download Datasheet

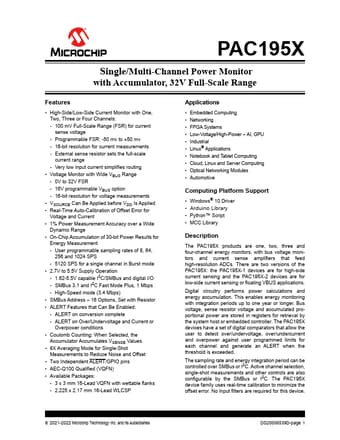

PAC1951-1 Datasheet Preview — Preview of PAC1951-1 PDF

Datasheet Details

Part number	PAC1951-1
Manufacturer	Microchip
File Size	1.14 MB
Description	Single/Multi-Channel Power Monitor
Datasheet	PAC1951-1-Microchip.pdf

PAC1951-1 Product details

Description

The PAC195X products are one, two, three and four-channel energy monitors, with bus voltage monitors and current sense amplifiers that feed high-resolution ADCs.

Features

High-Side/Low-Side Current Monitor with One, Two, Three or Four Channels: - 100 mV Full-Scale Range (FSR) for current sense voltage - Programmable FSR: -50 mv to +50 mv - 16-bit resolution for current measurements - External sense resistor sets the full-scale current range - Very low input current simplifies routing.
Voltage Monitor with Wide VBUS Range - 0V to 32V FSR - 16V programmable VBUS option - 16-bit resolution for voltage measurements.
