MX57, MX55 Low Jitter Crystal Oscillator

MX57 Description

MX55/57 Low Jitter Crystal Oscillator .
The MX55/MX57 product line is an ultra-low jitter family of industry standard crystal oscillators (XO) designed to maximize performance in networking,.

MX57 Features

* Output Frequency 2.5 MHz to 850 MHz
* Complies with PCIe Gen 1/2/3/4/5/6 Common Clock Specifications
* Phase Noise as Low as 150 fs at F0 = 156.25 MHz, Integration Bandwidth 12 kHz - 20 MHz, LVPECL Output
* Ultra Low Spurs (-113 dBc Typical)
* ±50 ppm Overvo

MX57 Applications

* 10/40/100G Ethernet
* Optical Communications
* PCIe Gen 1/2/3/4/5/6
* Fibre Channel/SAS

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MX57, MX55. Please refer to the document for exact specifications by model.

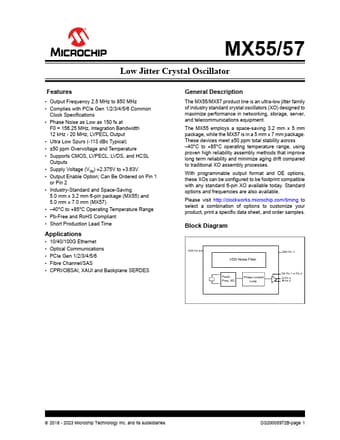

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MX57, MX55
Manufacturer
Microchip ↗
File Size
2.31 MB
Datasheet
MX55-Microchip.pdf
Description
Low Jitter Crystal Oscillator
Note
This datasheet PDF includes multiple part numbers: MX57, MX55.
Please refer to the document for exact specifications by model.
