MX575ABA100M000 Ultra-Low Jitter 100MHz LVPECL XO

MX575ABA100M000 Description

MX575ABA100M000 Ultra-Low Jitter 100MHz LVPECL XO ClockWorks® FUSION General .
The MX575ABA100M000 is an ultra-low phase jitter XO with LVPECL output optimized for high line rate applications. PCI-Express.

MX575ABA100M000 Features

* 100MHz LVPECL
* Typical phase noise: - 112fs (Integration range: 1.875MHz-20MHz)
* ±50ppm total frequency stability
* -40°C to +85°C temperature range
* Industry standard 6-Pin 7mm x 5mm LGA package Absolute Maximum Ratings Supply Voltage (VIN)+3.6V Lead Te

MX575ABA100M000 Applications

* Applications
* PCI-Express

📥 Download Datasheet

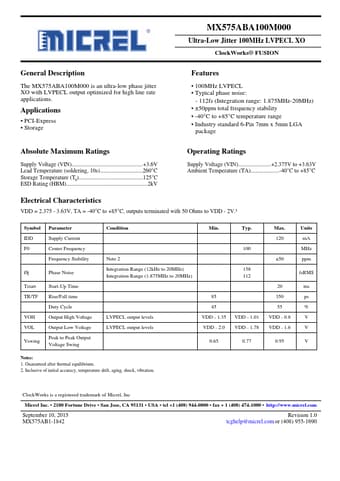

Preview of MX575ABA100M000 PDF
datasheet Preview Page 2 datasheet Preview Page 3
