MMA042PP4 - GaAs MMIC

Name: MMA042PP4
SKU: MMA042PP4-1516688

Microchip

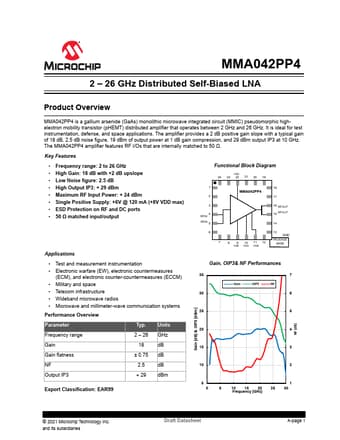

The MMA042PP4 by Microchip is a GaAs MMIC. Below is the official datasheet preview.

Datasheet Details

Part number	MMA042PP4
Manufacturer	Microchip
File Size	537.45 KB
Description	GaAs MMIC
Datasheet	MMA042PP4-Microchip.pdf
Additional preview pages of the MMA042PP4 datasheet.

RF I/Os that are internally matched to 50 Ω. Key Features.
Frequency range: 2 to 26 GHz.
High Gain: 18 dB with +2 dB upslope.
Low Noise figure: 2.5 dB.
High Output IP3: + 29 dBm.
Maximum RF Input Power: + 24 dBm.
Single Positive Supply: +6V @ 120 mA (+8V VDD max).
ESD Protection on RF and DC ports.
50 Ω matched input/output Functional Block Diagram VDD 24 23 22 21 20 19 1 2 3 RFIN 4 RFIN 5 MMA042PP4 18 17 16 RFOUT 15 R.
