MCP39F521 - I2C Power Monitor

Product Overview

Microchip

📥 Download Datasheet

MCP39F521 I2C Power Monitor by Microchip - Datasheet Preview — Datasheet preview – MCP39F521

Datasheet Details

Part number	MCP39F521
Manufacturer	Microchip
File Size	886.48 KB
Description	I2C Power Monitor
Datasheet	MCP39F521 Datasheet

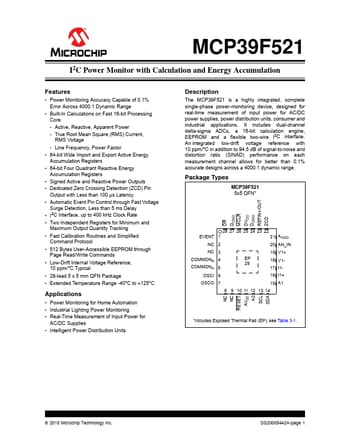

Additional preview pages of the MCP39F521 datasheet.

Product details

Features

Power Monitoring Accuracy Capable of 0.1% Error Across 4000:1 Dynamic Range.
Built-In Calculations on Fast 16-bit Processing Core - Active, Reactive, Apparent Power - True Root Mean Square (RMS) Current, RMS Voltage - Line Frequency, Power Factor.
64-bit Wide Import and Export Active Energy Accumulation Registers.
64-bit Four Quadrant Reactive Energy Accumulation Registers.
Signed Active and Reactive Power Outputs.
Dedicated Zero Crossing De.
