MCP39F511 - Power-Monitoring

Product Overview

Microchip

📥 Download Datasheet

MCP39F511 Power-Monitoring by Microchip - Datasheet Preview — Datasheet preview – MCP39F511

Datasheet Details

Part number	MCP39F511
Manufacturer	Microchip
File Size	935.59 KB
Description	Power-Monitoring
Datasheet	MCP39F511 Datasheet

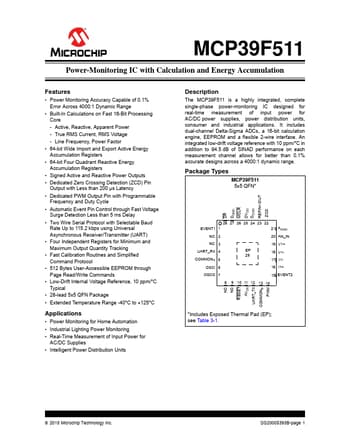

Additional preview pages of the MCP39F511 datasheet.

Product details

Features

Power Monitoring Accuracy Capable of 0.1% Error Across 4000:1 Dynamic Range.
Built-In Calculations on Fast 16-Bit Processing Core - Active, Reactive, Apparent Power - True RMS Current, RMS Voltage - Line Frequency, Power Factor.
64-bit Wide Import and Export Active Energy Accumulation Registers.
64-bit Four Quadrant Reactive Energy Accumulation Registers.
Signed Active and Reactive Power Outputs.
Dedicated Zero Crossing Detection (ZCD) Pin O.
