KSZ8864RMNUB, KSZ8864CNX Integrated 4-Port 10/100 Managed Switch

KSZ8864RMNUB Description

KSZ8864CNX/RMNUB Integrated 4-Port 10/100 Managed Switch with Two MACs MII or RMII Interfaces .

KSZ8864RMNUB Features

* Advanced Switch Features
* IEEE 802.1q VLAN Support for up to 128 VLAN Groups (Full-Range 4096 of VLAN IDs)
* Static MAC Table Supports up to 32 Entries
* VLAN ID Tag/Untagged Options, Per Port Basis
* IEEE 802.1p/q Tag Insertion or Removal on a Per Port Basis Based o

KSZ8864RMNUB Applications

* VoIP Phone
* Set-Top/Game Box
* Automotive Ethernet
* Industrial Control
* IPTV POF
* SOHO Residential Gateway
* Broadband Gateway/Firewall/VPN
* Integrated DSL/Cable Modem
* Wireless LAN Access Point + Gateway
* Stand

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KSZ8864RMNUB, KSZ8864CNX. Please refer to the document for exact specifications by model.

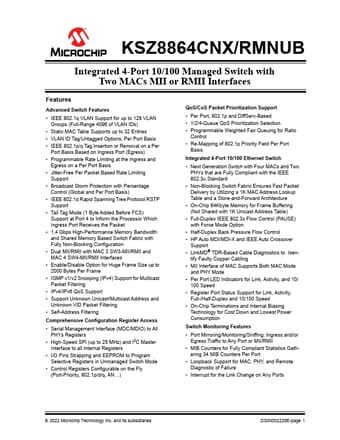

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KSZ8864RMNUB, KSZ8864CNX
Manufacturer
Microchip ↗
File Size
2.45 MB
Datasheet
KSZ8864CNX-Microchip.pdf
Description
Integrated 4-Port 10/100 Managed Switch
Note
This datasheet PDF includes multiple part numbers: KSZ8864RMNUB, KSZ8864CNX.
Please refer to the document for exact specifications by model.
