KSZ8862-16MQL - 2-Port Ethernet Switch

Micrel Semiconductor

The KSZ8862-16MQL by Micrel Semiconductor is a 2-Port Ethernet Switch. Below is the official datasheet preview.

📥 Download Datasheet

KSZ8862-16MQL 2-Port Ethernet Switch by Micrel Semiconductor - Datasheet Preview — Official preview page of the **KSZ8862-16MQL** 2-Port Ethernet Switch datasheet (Micrel Semiconductor).

Datasheet Details

Part number	KSZ8862-16MQL
Manufacturer	Micrel Semiconductor
File Size	952.57 KB
Description	2-Port Ethernet Switch
Datasheet	KSZ8862-16MQL_MicrelSemiconductor.pdf

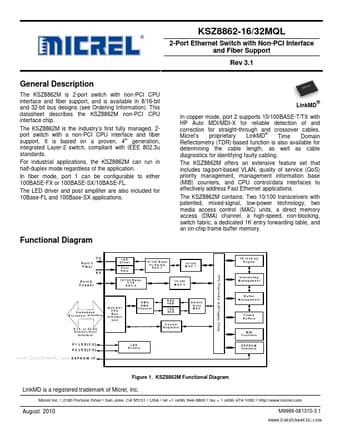

Additional preview pages of the KSZ8862-16MQL datasheet.

KSZ8862-16MQL Product details

Description

The KSZ8862M is 2-port switch with non-PCI CPU interface and fiber support, and is available in 8/16-bit and 32-bit bus designs (see Ordering Information).

Features

Switch Management.
Non-blocking switch fabric assures fast packet delivery by utilizing a 1K entry forwarding table and a store-and-forward architecture.
Fully compliant with IEEE 802.3u standards.
Full-duplex IEEE 802.3x flow control (Pause) with force mode option.
Half-duplex back pressure flow control Advanced Switch Management.
IEEE 802.1Q VLAN support for up to 16 groups (full range of VLAN IDs).
VLAN ID tag/untag options, on a per port.
