HV9123, HV9120 High-Voltage Current-Mode PWM Controller

HV9123 Description

HV9120/HV9123 High-Voltage, Current-Mode, PWM Controller .
HV9120 and HV9123 are Switch-Mode Power Supply (SMPS) controllers suitable for the control of a variety of converter topologies, including flyback and.

HV9123 Features

* 10 to 450V input voltage range
* 1 MHz clock

HV9123 Applications

* Off-line high frequency power supplies
* Universal input power supplies
* High density power supplies
* Very high efficiency power supplies

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HV9123, HV9120. Please refer to the document for exact specifications by model.

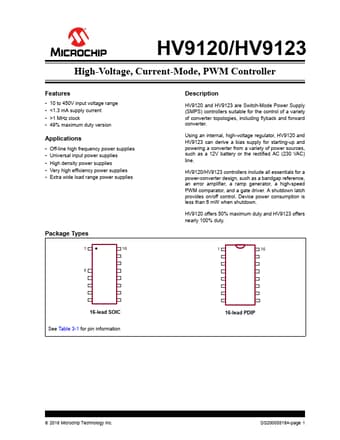

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HV9123, HV9120
Manufacturer
Microchip ↗
File Size
446.35 KB
Datasheet
HV9120-Microchip.pdf
Description
High-Voltage Current-Mode PWM Controller
Note
This datasheet PDF includes multiple part numbers: HV9123, HV9120.
Please refer to the document for exact specifications by model.
