HV7361, HV7360 - 2.5A Two-or-Three-Level Ultrasound Pulsers

HV7361 Description

HV7360/HV7361 High-Speed ±100V 2.5A Two-or-Three-Level Ultrasound Pulsers .
The HV7360/HV7361 are high-voltage and high-speed pulse generators with built-in, fast return-to-zero damping Field-Effect Transistors (FETs).

HV7361 Features

* High-Density Integration AC-coupled Pulser
* 0V to ±100V Output Voltage
* ±2.5A Source and Sink Minimum Pulse Current
* Up to 35 MHz Operating Frequency
* 2 ns Matched Delay Times
* 2.5V, 3.3V or 5V CMOS Logic Interface
* Built-in Two-termina

HV7361 Applications

* Medical Ultrasound Imaging
* Piezoelectric Transducer Drivers
* Ultrasound Industrial NDT

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HV7361, HV7360. Please refer to the document for exact specifications by model.

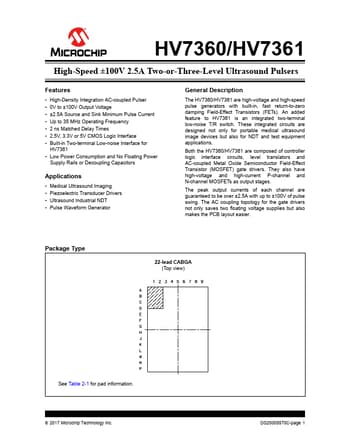

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HV7361, HV7360
Manufacturer
Microchip ↗
File Size
868.35 KB
Datasheet
HV7360-Microchip.pdf
Description
2.5A Two-or-Three-Level Ultrasound Pulsers
Note
This datasheet PDF includes multiple part numbers: HV7361, HV7360.
Please refer to the document for exact specifications by model.
