HV7022 - 34-Channel Symmetric Row Driver

HV7022 Description

HV7022 34-Channel Symmetric Row Driver .
HV7022 is a low-voltage serial to high-voltage parallel converter with push-pull outputs.

HV7022 Features

* High-Voltage CMOS technology
* Symmetric row drive (reduces latent imaging in ACTFEL displays)
* Output voltage up to +230V
* Low power level shifting
* Source/sink current minimum 70 mA
* Shift register speed 4.0 MHz
* Pin-programmable shift

📥 Download Datasheet

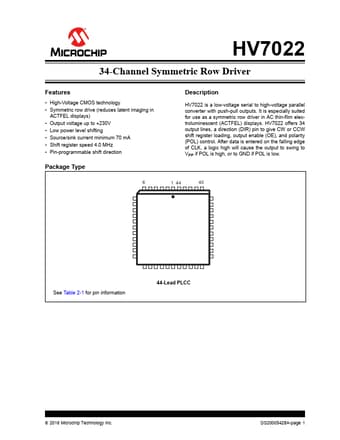

Preview of HV7022 PDF
