DSA1004, DSA1001 - 1.8V-3.3V Low-Power Precision CMOS Oscillators

Name: DSA1004
SKU: DSA1004-1516687

Microchip

📥 Download Datasheet

DSA1004 Datasheet Preview — This datasheet PDF includes multiple part numbers: DSA1004, DSA1001. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	DSA1004, DSA1001
Manufacturer	Microchip
File Size	882.99 KB
Description	1.8V-3.3V Low-Power Precision CMOS Oscillators
Datasheet	DSA1001-Microchip.pdf
Note	This datasheet PDF includes multiple part numbers: DSA1004, DSA1001. Please refer to the document for exact specifications by model.

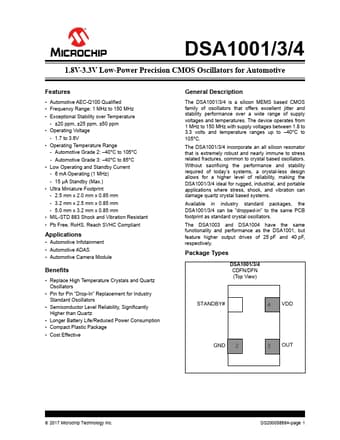

DSA1004 Product details

Description

The DSA1001/3/4 is a silicon MEMS based CMOS family of oscillators that offers excellent jitter and stability performance over a wide range of supply voltages and temperatures. 40°C to 105°C.

Features

Automotive AEC-Q100 Qualified.
Frequency Range: 1 MHz to 150 MHz.
Exceptional Stability over Temperature - ±20 ppm, ±25 ppm, ±50 ppm.
Operating Voltage - 1.7 to 3.6V.
Operating Temperature Range - Automotive Grade 2:.
40°C to 105°C - Automotive Grade 3:.
40°C to 85°C.
Low Operating and Standby Current - 6 mA Operating (1 MHz) - 15 µA Standby (Max. ).
Ultra Miniature Footprint - 2.5 mm x 2.0 mm x 0.85 mm - 3.2 mm x 2.5.
