DSA1-12D, Avalanche Diode

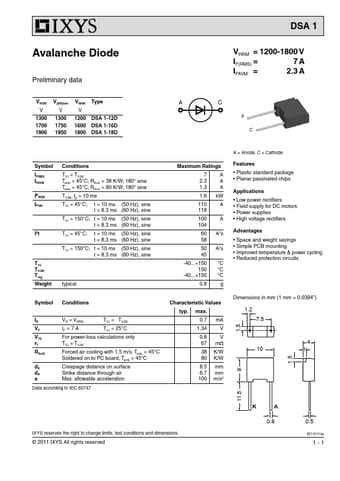

DSA 1 Avalanche Diode Preliminary data VRRM = 1200-1800 V IF(RMS) = 7 A IFAVM = 2.3 A VRSM V 1300 1700 1900 V(BR)min V 1300 1750 1950 VRRM V 1200 1600 1800 Type DSA 1-12D DSA 1-16D DSA 1-18D AC A C Symbol IFRMS IFAVM PRSM IFSM I2t TVJ TVJM Tstg Weight Conditions TVJ = TVJM Tamb = 45°C; RthJA = 38 K/W; 180° sine Tamb = 45°C; RthJA = 80 K/W; 180° sine TVJM, tp = 10 ms TVJ = 45°C; t = 10 ms (50 Hz), sine t = 8.3 ms (60 Hz), sine TVJ = 150°C; t = 10 ms (50 Hz), sine t = 8.3

DSA1-12D Features

* Plastic standard package

* Planar passivated chips Applications

* Low power rectifiers

* Field supply for DC motors

* Power supplies

* High voltage rectifiers Advantages

* Space and weight savings

* Simple PCB mounting

* Impro
