PIC24FV16KM102 - 16-Bit Flash Microcontroller

This page provides the datasheet information for the PIC24FV16KM102, a member of the PIC24FV16KM204 16-Bit Flash Microcontroller family.

Features

  • Up to Two 8-Bit Digital-to-Analog Converters (DAC): - Soft Reset disable function allows DAC to retain its output value through non-VDD Resets - Support for Idle mode - Support for left and right-justified input data.
  • Two Operational Amplifiers (Op Amps): - Differential inputs - Selectable power/speed levels: - Low power/low speed - High power/high speed.
  • Up to 22-Channel, 10/12-Bit Analog-to-Digital Converter: - 100k samples/second at 12-bit conversion rate (single S.

📥 Download Datasheet

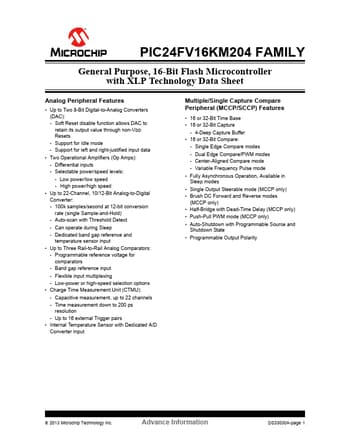

Datasheet preview – PIC24FV16KM102

📁 Similar Datasheet

Other Datasheets by Microchip Technology

Full PDF Text Transcription

Click to expand full text
PIC24FV16KM204 FAMILY General Purpose, 16-Bit Flash Microcontroller with XLP Technology Data Sheet Analog Peripheral Features • Up to Two 8-Bit Digital-to-Analog Converters (DAC): - Soft Reset disable function allows DAC to retain its output value through non-VDD Resets - Support for Idle mode - Support for left and right-justified input data • Two Operational Amplifiers (Op Amps): - Differential inputs - Selectable power/speed levels: - Low power/low speed - High power/high speed • Up to 22-Channel, 10/12-Bit Analog-to-Digital Converter: - 100k samples/second at 12-bit conversion rate (single Sample-and-Hold) - Auto-scan with Threshold Detect - Can operate during Sleep - Dedicated band gap reference and temperature sensor input • Up to Three Rail-to-Rail Analog Comparators: - Programmabl
