ML2284 - Serial I/O 8-Bit A/D Converters

Download the ML2284 datasheet PDF (ML2282 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for serial i/o 8-bit a/d converters.

Description

The ML2281 family are 8-bit successive approximation A/D converters with serial I/O and configurable input multiplexers with up to 8 input channels.

All errors of the sample-and-hold, incorporated on the ML2281 family are accounted for in the analog-to-digital converters accuracy specification.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ML2282-MicroLinear.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ML2284
Manufacturer Micro Linear
File Size 388.58 KB
Description Serial I/O 8-Bit A/D Converters
Datasheet download datasheet ML2284 Datasheet

📁 Similar Datasheet

  • ML22804 - ADPCM Algorithm-Based Speech Synthesis LSI (LAPIS)
  • ML22808 - ADPCM Algorithm-Based Speech Synthesis LSI (LAPIS)
  • ML22823 - LSI (LAPIS)
  • ML22824 - LSI (LAPIS)
  • ML22825 - LSI (LAPIS)
  • ML22863 - LSI (LAPIS)
  • ML22864 - LSI (LAPIS)
  • ML22865 - LSI (LAPIS)
  • ML2201 - Speech Synthesizer LSI with on-chip 384K Mask ROM (OKI electronic componets)
  • ML22321 - ADPCM Speech Synthesis LSI (LAPIS)
Other Datasheets by Micro Linear
  • ML2280 - Serial I/O 8-Bit A/D Converters
  • ML2281 - Serial I/O 8-Bit A/D Converters
  • ML2282 - Serial I/O 8-Bit A/D Converters
  • ML2288 - Serial I/O 8-Bit A/D Converters
  • ML2200 - 12-Bit Plus Sign Data Acquisition Peripheral
  • ML2208 - 12-Bit Plus Sign Data Acquisition Peripheral
  • ML2252 - uP Compatible 8-Bit A/D Converters
  • ML2258 - 8-Bit A/D Converter

Full PDF Text Transcription

Click to expand full text

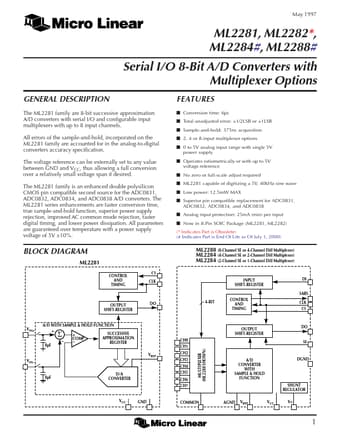

May 1997 ML2281, ML2282*, ML2284#, ML2288# Serial I/O 8-Bit A/D Converters with Multiplexer Options GENERAL DESCRIPTION The ML2281 family are 8-bit successive approximation A/D converters with serial I/O and configurable input multiplexers with up to 8 input channels. All errors of the sample-and-hold, incorporated on the ML2281 family are accounted for in the analog-to-digital converters accuracy specification. The voltage reference can be externally set to any value between GND and VCC, thus allowing a full conversion over a relatively small voltage span if desired. The ML2281 family is an enhanced double polysilicon CMOS pin compatible second source for the ADC0831, ADC0832, ADC0834, and ADC0838 A/D converters.
