ML22825 - LSI

Datasheet Summary

Description

ML2282X(ML22825/ML22824/ML22823-XXX) and ML2286X (ML22865/ML22864/ML22863-XXX) are voice synthesis LSIs with built-in P2ROM that stores speech data.

These LSIs include edit ROM, ADPCM2 decoder, 16-bit DA converter, low pass filter and monaural speaker amplifier.

📥 Download Datasheet

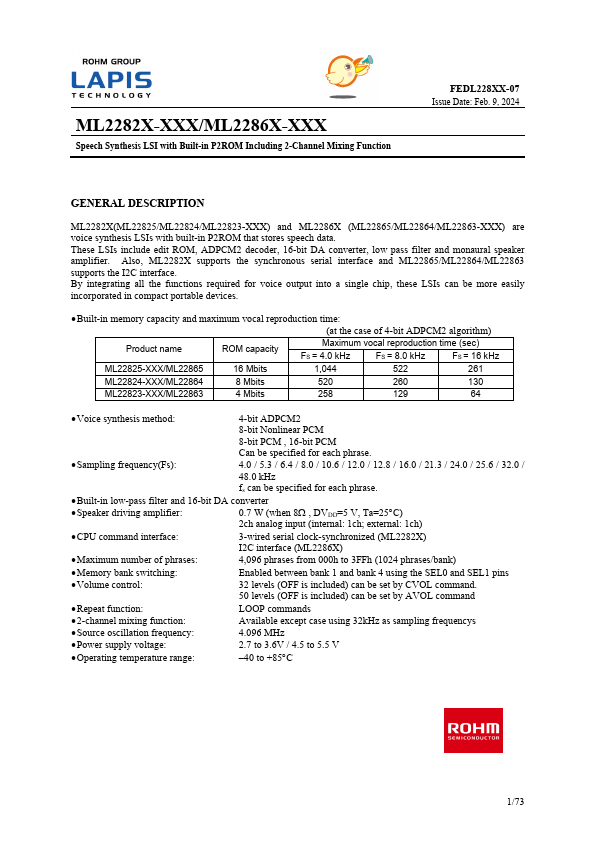

Datasheet preview – ML22825

Datasheet Details

Part number ML22825
Manufacturer LAPIS
File Size 2.32 MB
Description LSI
Datasheet download datasheet ML22825 Datasheet

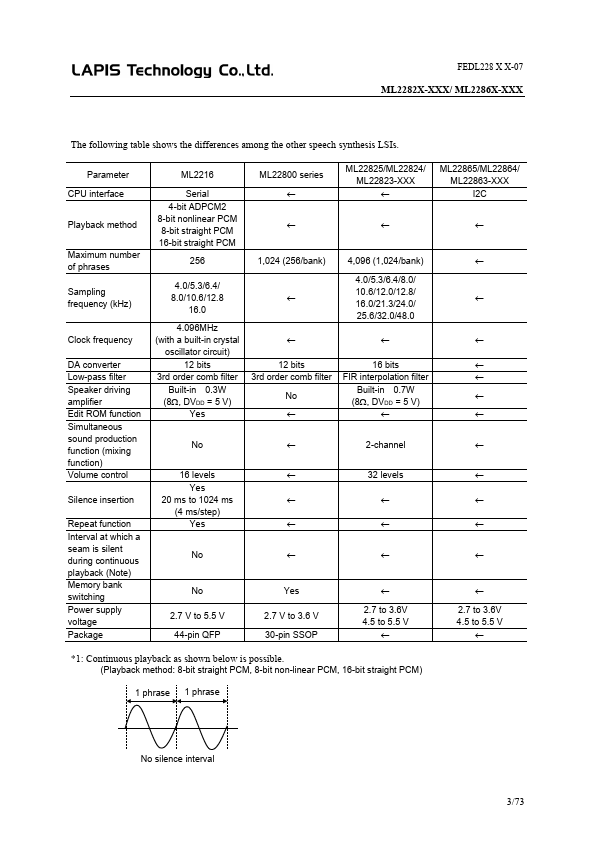

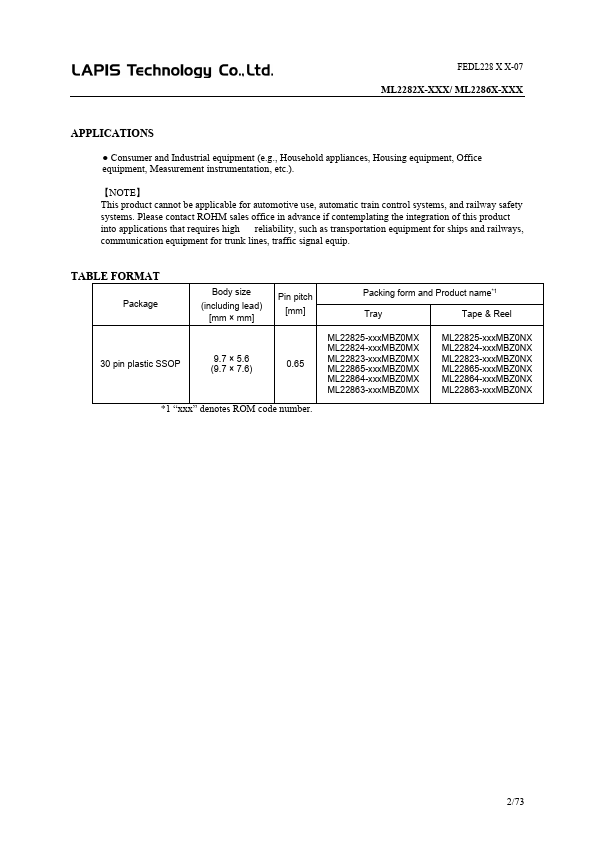

Additional preview pages of the ML22825 datasheet.

📁 Similar Datasheet

  • ML2282 - Serial I/O 8-Bit A/D Converters (Micro Linear)
  • ML2280 - Serial I/O 8-Bit A/D Converters (Micro Linear)
  • ML2281 - Serial I/O 8-Bit A/D Converters (Micro Linear)
  • ML2284 - Serial I/O 8-Bit A/D Converters (Micro Linear)
  • ML2288 - Serial I/O 8-Bit A/D Converters (Micro Linear)
  • ML2200 - 12-Bit Plus Sign Data Acquisition Peripheral (Micro Linear)
  • ML2201 - Speech Synthesizer LSI with on-chip 384K Mask ROM (OKI electronic componets)
  • ML2208 - 12-Bit Plus Sign Data Acquisition Peripheral (Micro Linear)
  • ML2252 - uP Compatible 8-Bit A/D Converters (Micro Linear)
  • ML2258 - 8-Bit A/D Converter (Micro Linear)
Other Datasheets by LAPIS

Full PDF Text Transcription

Click to expand full text
ML2282X-XXX/ML2286X-XXX Speech Synthesis LSI with Built-in P2ROM Including 2-Channel Mixing Function FEDL228XX-07 Issue Date: Feb. 9, 2024 GENERAL DESCRIPTION ML2282X(ML22825/ML22824/ML22823-XXX) and ML2286X (ML22865/ML22864/ML22863-XXX) are voice synthesis LSIs with built-in P2ROM that stores speech data. These LSIs include edit ROM, ADPCM2 decoder, 16-bit DA converter, low pass filter and monaural speaker amplifier. Also, ML2282X supports the synchronous serial interface and ML22865/ML22864/ML22863 supports the I2C interface. By integrating all the functions required for voice output into a single chip, these LSIs can be more easily incorporated in compact portable devices.
