ML2280

The ML2280 is Serial I/O 8-Bit A/D Converters designed by Micro Linear.

Product Overview

Micro Linear

Datasheet Details

Part number	ML2280
Manufacturer	Micro Linear
File Size	357.49 KB
Description	Serial I/O 8-Bit A/D Converters
Datasheet	ML2280_MicroLinearCorporation.pdf

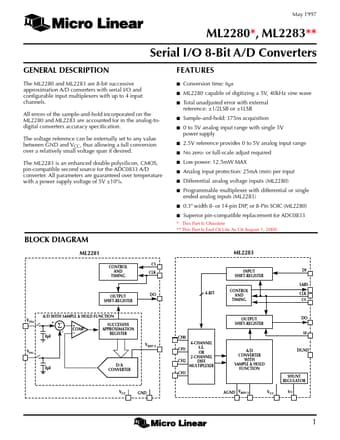

Additional preview pages of the ML2280 datasheet.

Product details

Description

The ML2280 and ML2283 are 8-bit successive approximation A/D converters with serial I/O and configurable input multiplexers with up to 4 input channels.

Features

s s s Conversion time: 6µs ML2280 capable of digitizing a 5V, 40kHz sine wave Total unadjusted error with external reference: ±1/2LSB or ±1LSB Sample-and-hold: 375ns acquisition 0 to 5V analog input range with single 5V power supply 2.5V reference provides 0 to 5V analog input range No zero- or full-scale adjust required Low power: 12.5mW MAX Analog input protection: 25mA (min) per input Differential analog voltage inputs (ML2280) Programmable multiplexer with differential or single ended analo.
