PL610-01 - 1MHz to 130MHz XO IC

Micrel

📥 Download Datasheet

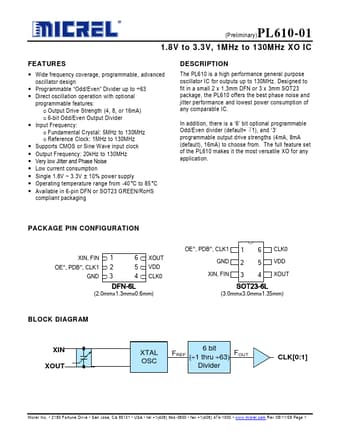

PL610-01 Datasheet Preview — Preview of PL610-01 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PL610-01
Manufacturer	Micrel
File Size	365.91 KB
Description	1MHz to 130MHz XO IC
Datasheet	PL610-01-Micrel.pdf

PL610-01 Product details

Description

The PL610 is a high performance general purpose oscillator IC for outputs up to 130MHz.

Features

o Output Drive Strength (4, 8, or 16mA) o 6-bit Odd/Even Output Divider.
Input Frequency: o Fundamental Crystal: 5MHz to 130MHz o Reference Clock: 1MHz to 130MHz.
Supports CMOS or Sine Wave input clock.
Output Frequency: 20kHz to 130MHz.
Very low Jitter and Phase Noise.
Low current consumption.
Single 1.8V ~ 3.3V ± 10% power supply.
Operating temperature range from -40C to 85C.
Available in 6-pin DFN or SOT23 GREEN/RoHS compliant packaging.
