SY89840U - Precision LVPECL Runt Pulse Eliminator 2:1 Multiplexer

Micrel Semiconductor

📥 Download Datasheet

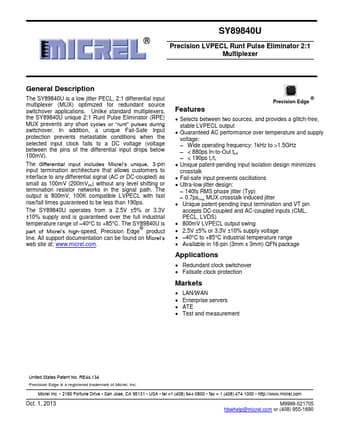

SY89840U Datasheet Preview — Preview of SY89840U PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SY89840U
Manufacturer	Micrel Semiconductor
File Size	611.74 KB
Description	Precision LVPECL Runt Pulse Eliminator 2:1 Multiplexer
Datasheet	SY89840U_MicrelSemiconductor.pdf

SY89840U Product details

Description

The SY89840U is a low jitter PECL, 2:1 differential input multiplexer (MUX) optimized for redundant source switchover applications.

Features

Precision Edge ®.
Selects between two sources, and provides a glitch-free, stable LVPECL output.
Guaranteed AC performance over temperature and supply voltage:.
Wide operating frequency: 1kHz to >1.5GHz.
< 880ps In-to-Out tpd.
< 190ps tr/tf.
Unique patent-pending input isolation design minimizes crosstalk.
Fail-safe input prevents oscillations.
Ultra-low jitter design:.
140fs RMS phase jitter (Typ).
0.7psrms MUX crosstalk in.
