SY89206V DIFFERENTIAL PECL/ECL RECEIVER/BUFFER

SY89206V Description

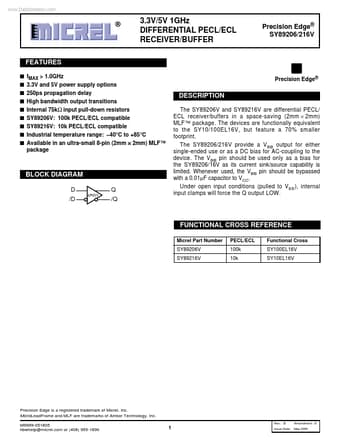

www.DataSheet4U.com Micrel, Inc.3.3V/5V 1GHz DIFFERENTIAL PECL/ECL RECEIVER/BUFFER Precision Edge® SY89206/216V Precision Edge® SY89206/216V FEA.
The SY89206V and SY89216V are differential PECL/ ECL receiver/buffers in a space-saving (2mm × 2mm) MLF™ package.

SY89206V Features

* s s s s s s s s s fMAX > 1.0GHz 3.3V and 5V power supply options 250ps propagation delay High bandwidth output transitions Internal 75kΩ input pull-down resistors SY89206V: 100k PECL/ECL compatible SY89216V: 10k PECL/ECL compatible Industrial temperature range:
* 40°C to +85°C Available in an

SY89206V Applications

* section for single-ended inputs. Differential PECL/ECL Output: Q output defaults to LOW if D inputs left open. See “Output Interface Applications” section for recommendations on terminations. Positive Power Supply: Bypass with 0.1µF//0.01µF low ESR capacitors. Negative Power Supply: VEE and exposed
