SY89323L 3.3V DUAL DIFFERENTIAL LVPECL TO LVTTL TRASLATOR

SY89323L Description

Micrel, Inc.3.3V DUAL DIFFERENTIAL LVPECL-TO-LVTTL TRANSLATOR Precision Edge® Precision ESdYg89e3®23L SY89323L .
The SY89323L is a dual differential LVPECL-to-LVTTL translator.

SY89323L Features

* 3.3V power supply
* 1.9ns typical propagation delay
* Maximum frequency > 275MHz
* Differential LVPECL inputs
* 24mA LVTTL outputs
* Flow-through pinouts
* Internal input resistors: pull-down on IN, pull-down and pull-up on /IN
* Q output will default LOW with input

SY89323L Applications

* that require the translation of a clock and data signal in a minimal space. The inputs are compatible with 10k and 100k input levels and any standard differential LVPECL input referenced to a VCC of 3.3V. LVPECL INO /INO INI /INI Q0 LVTTL Q1 Precision Edge is a registered trademark of Micrel, In

📥 Download Datasheet

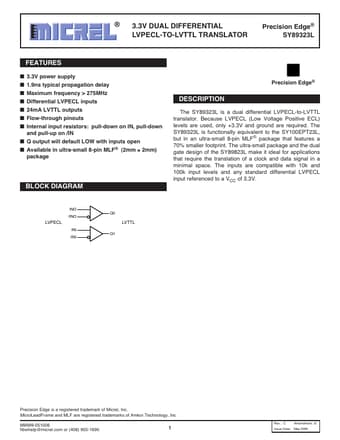

Preview of SY89323L PDF
