SY87700AL Clock and Data Recovery

SY87700AL Description

SY87700AL Low-Power, 3.3V, 32Mbps to 208Mbps AnyRate® Clock and Data Recovery General .
The SY87700AL is a complete clock recovery and data retiming integrated circuit for data rates from 32Mbps up to 208Mbps NRZ.

SY87700AL Features

* AnyRate®
* 3.3V power supply
* SONET/SDH/ATM compatible
* Clock and data recovery from 32Mbps up to 208Mbps NRZ data stream; clock generation from 32Mbps to 208Mbps
* Two on-chip PLLs: one for clock generation and another for clock recovery
* Selectable refe

SY87700AL Applications

* and other high-speed data transmission systems. Clock recovery and data retiming is performed by synchronizing the on-chip VCO directly to the incoming data stream. The VCO center frequency is controlled by the reference clock frequency and the selected divide ratio. On-chip clock generation is perf

📥 Download Datasheet

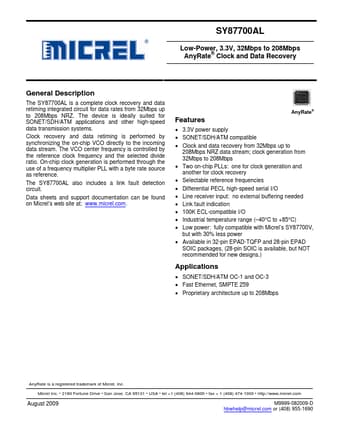

Preview of SY87700AL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY87700AL
Manufacturer
Micrel Semiconductor
File Size
556.85 KB
Datasheet
SY87700AL_MicrelSemiconductor.pdf
Description
Clock and Data Recovery
