SY8751 - 500kHz White LED Driver

Description

SY8751 is a high efficiency, 5V-80V wide input voltage range DC/DC regulator targeting at LED applications.

The device integrates the low RDS(ON) MOSFET and internal compensation.SY8751 supports analog dimming with PWM signal/Analog signal.

( )

Features

  • Wide input range: 5-80 V.
  • 500kHz switching frequency.
  • Integrated low RDS(ON) FET.
  • Analog dimming with PWM signal/Analog signal.
  • Maximum output LED current 1.2A.
  • Compact package: SO8E.

📥 Download Datasheet

Datasheet Details

Part number SY8751
Manufacturer Silergy
File Size 1.05 MB
Description 500kHz White LED Driver
Datasheet download datasheet SY8751 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SY8702 Overvoltage protection TPS
SY87700AL Clock and Data Recovery Micrel Semiconductor
SY87700L CLOCK AND DATA RECOVERY Micrel Semiconductor
SY87700V CLOCK AND DATA RECOVERY Micrel Semiconductor
SY87701AL AnyRate Clock and Data Recovery Micrel Semiconductor

Other Datasheets by Silergy

Part Number Description
SY8707 Step Down White LED Driver
SY8718A1 2.0A Synchronous Step Down Regulator
SY8745 500kHz White LED Driver
SY8745A Constant Current Step-down Regulator
SY8002A1 2A Synchronous Step Down Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

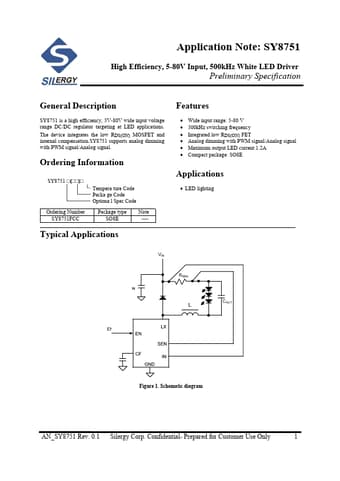

Application Note: SY8751 High Efficiency, 5-80V Input, 500kHz White LED Driver Preliminary Specification General Description SY8751 is a high efficiency, 5V-80V wide input voltage range DC/DC regulator targeting at LED applications. The device integrates the low RDS(ON) MOSFET and internal compensation.SY8751 supports analog dimming with PWM signal/Analog signal. Ordering Information SY8751 □(□□)□ Ordering Number SY8751FCC Tempera ture Code Packa ge Code Optiona l Spec Code Package type SO8E Note ---- Typical Applications Features  Wide input range: 5-80 V  500kHz switching frequency  Integrated low RDS(ON) FET  Analog dimming with PWM signal/Analog signal  Maximum output LED current 1.2A  Compact package: SO8E Applications  LED lighting Figure 1.
