SY10EL11V - 5V/3.3V 1:2 Differential Fanout Buffer

Download the SY10EL11V datasheet PDF. This datasheet also covers the SY100EL11V variant, as both devices belong to the same 5v/3.3v 1:2 differential fanout buffer family and are provided as variant models within a single manufacturer datasheet.

Description

The SY10/100EL11V are 1:2 differential fanout gates.

These devices are functionally similar to the E111A/L devices, with higher performance capabilities.

Features

  • 3.3V and 5V power supply options.
  • 265ps propagation delay.
  • 5ps skew between outputs.
  • High bandwidth output transitions.
  • Internal 75kΩ input pull-down resistors.
  • Replaces SY10/100EL11.
  • Improved output waveform characteristics.
  • Available in 8-pin SOIC package Pin Names Pin D Q0, Q1 Function Data Inputs Data Outputs Precision is a registered trademark of Micrel, Inc. Micrel Inc.
  • 2180 Fortune Drive.
  • San J.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SY100EL11V_MicrelSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SY10EL11V
Manufacturer Micrel Semiconductor
File Size 250.77 KB
Description 5V/3.3V 1:2 Differential Fanout Buffer
Datasheet download datasheet SY10EL11V Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SY10ELT23 DUAL DIFFERENTIAL PECL-to-TTL TRANSLATOR Synergy
SY10 SYNCHRONOUS EQUIPMENT STRATUM 3/3E CLOCK UNIT Raltron Electronics
SY100 3 Port Solenoid Valve Rubber Seal SMC
SY100EL11V 5V/3.3V ECL 1:2 Differential Fanout Buffe Microchip
SY100EL16S 5V VARIABLE OUTPUT SWING DIFFERENTIAL RECEIVER Synergy

Other Datasheets by Micrel Semiconductor

Part Number Description
SY10EL1189 Fibre Channel Coaxial Cable Driver
SY10EL12 LOW-IMPEDANCE DRIVER
SY10EL16VA-VF ENHANCED DIFFERENTIAL RECEIVER
SY10EL01 4-INPUT OR/NOR
SY10EL04 2-INPUT AND/NAND

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

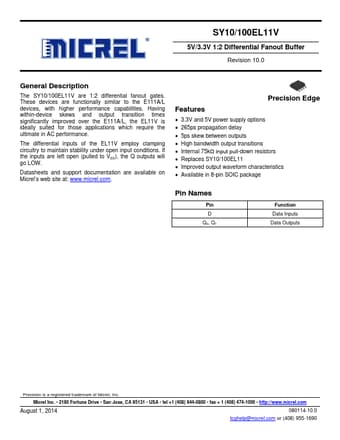

SY10/100EL11V 5V/3.3V 1:2 Differential Fanout Buffer Revision 10.0 General Description The SY10/100EL11V are 1:2 differential fanout gates. These devices are functionally similar to the E111A/L devices, with higher performance capabilities. Having within-device skews and output transition times significantly improved over the E111A/L, the EL11V is ideally suited for those applications which require the ultimate in AC performance. The differential inputs of the EL11V employ clamping circuitry to maintain stability under open input conditions. If the inputs are left open (pulled to VEE), the Q outputs will go LOW. Datasheets and support documentation are available on Micrel’s web site at: www.micrel.com. Precision Edge Features • 3.
